Hale PowerFlow HPX75-B18 Firefighting Pump
The Hale PowerFlow HPX75 series pumps are available in a variety of configurations to suit your specific needs and situations.

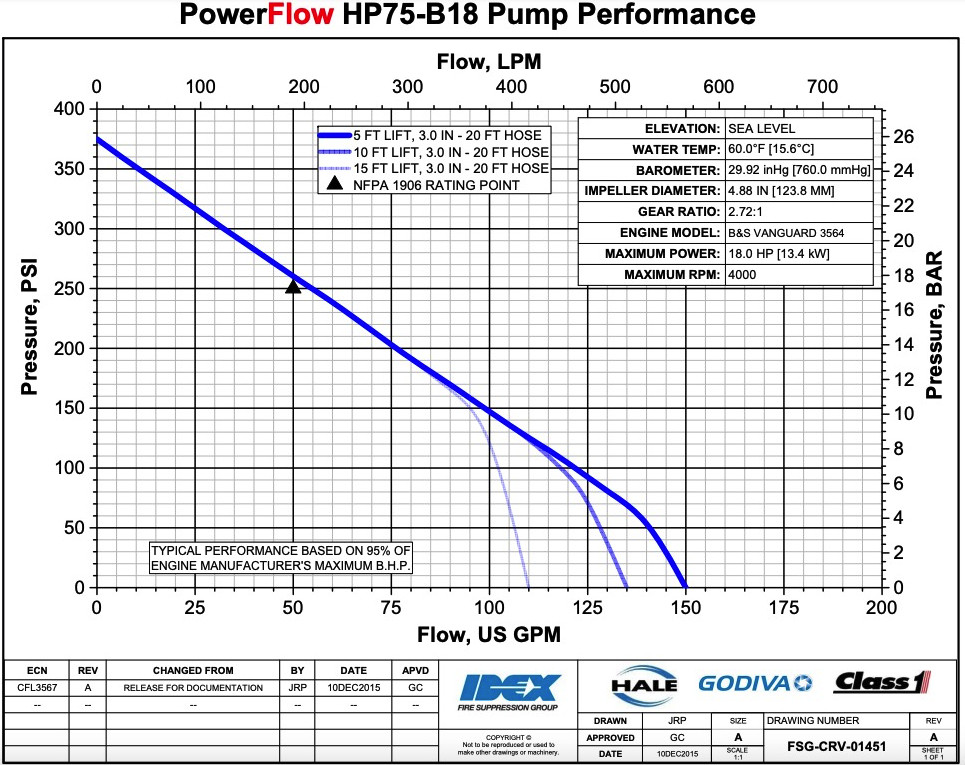

Flows:
135 GPM @ 50 PSI
70 GPM @ 200 PSI
15 GPM @ 325 PSI
The Hale HPX PowerFlow is conveniently designed for easy installation on trucks and skid units.
Features:
Control Panel:
Specifications: The Hale PowerFlow HPX75 series pumps are available in a variety of configurations to suit your specific needs and situations.
Flows:
135 GPM @ 50 PSI
70 GPM @ 200 PSI
15 GPM @ 325 PSI
The Hale HPX PowerFlow is conveniently designed for easy installation on trucks and skid units.
Features:
- Skid/Truck mount
- HP75 Pump End
- Briggs Vanguard 18HP Engine
- Exhaust Gas Primer
- Portable 6-gallon EPA-compliant fuel tank
- Ultra-reliable Briggs & Stratton 18-HP 4-cycle V-Twin gasoline engine
- Electric start with recoil backup
- Anodized aluminum alloy pump head and body
- Pump head and body coupled together with stainless steel band clamp for easy serviceability.
- Bronze impeller and renewable wear ring
- Self-adjusting mechanical seal
- 6’ wiring harness
Control Panel:
- Discharge gauge
- Priming lever
- Start button
- ON/OFF switch
- Oil warning light
- Choke
- Throttle control
| Length: | | 21" inches |
| Width: | | 18" inches |
| Height: | | 20" inches |
| Weight: | | 157 lbs (71 kg) |
| Suction Connection: | | 2" Female NPT (other adapters available) |
| Discharge Connection: | | 1.5" Male NPT (other adapters available) |
| Body & Volute: | | Aluminum |
| Pump Shaft: | | Stainless Steel |
| Priming: | | Exhaust Venturi; 15-20" (508mm) HG |
| Impeller: | | 4.875" (124mm) silicon bronze |
| Type: | | High pressure Low flow |
| Max Flow: | | 140 GPM |
| Max Pressure: | | 375 PSI |
