Description
Waterous 18HP Briggs & Stratton Fire Pump, High Volume/ Low Pressure
Waterous PB18-4025B
Only sold outside of United States
Your All-Around Transfer and Supply Pump

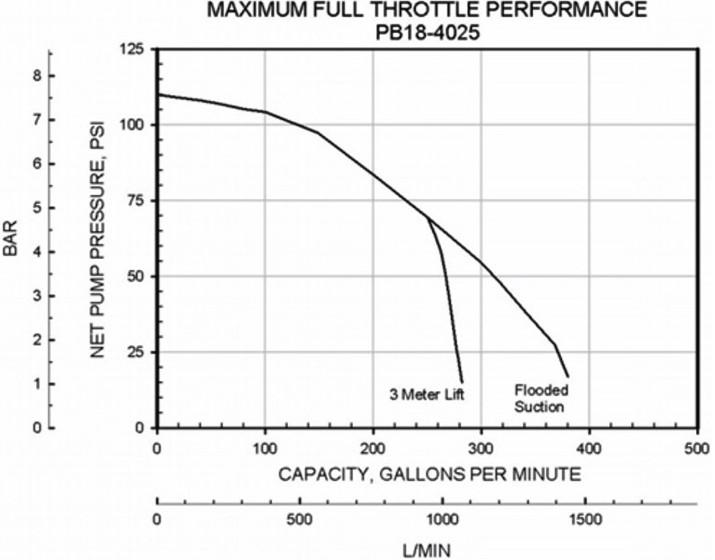

Flows:
| Max Flow: | 375 GPM @ 25 PSI (1400 L/min. @ 1.7 bar) | |
| Max Pressure: | 110 GPM @ 100 PSI (400 L/min. @ 6.8 bar) |
The Waterous 18HP Briggs & Stratton Fire Pump is a versatile transfer and supply pump mated to a Briggs & Stratton V-Twin, 18 HP (13.4 kW) engine. The PB18-4025B also comes with a two-year limited warranty and is CE marked.
NOTE: PB18-4025 models equipped with Wrap-Around Bases are CE Marked (see below for Wrap-Around Base information).
PUMP SPECIFICATIONS:
| Type: | Transfer - Supply | |
| Intake: | 4" (inch) male, British round thread with cap and chain | |
| Discharge: | 2- 1/2" (inch) British instantaneous coupling with ball valve | |
| Console: | Operator's panel includes discharge pressure gauge, compound intake pressure gauge, low oil pressure warning light, start and stop control, speed control, panel light and 12 volt outlet. | |
| Volute Body & Head: | High-strength aluminum alloy, anodized for superior corrosion resistance | |
| Impeller: | High-strength, corrosion-resistant bronze, fully-enclosed, double-hubbed to balance hydraulic thrust, mechanically balanced to eliminate vibration. | |
| Wear Rings: | Long wearing bronze. Easy to replace when required to restore original pump efficiency. | |
| Shaft Sleeve: | High-strength stainless steel | |
| Shaft Seal: | Spring-loaded mechanical type | |
| Priming: | Combination spark arresting muffler and exhaust primer, fast and easy to use. Quarter turn bronze priming valve, operates with push/pull knob. Standard on wrap-around. Optional on 'no base' and 'rail base' |
Warranty:
Waterous Two-Year Limited Warranty
ENGINE SPECIFICATIONS:
| Engine: | Briggs & Stratton, model 356447, Vanguard V-Twin air cooled, overhead valve (OHV) design delivers a maximum output of 18 HP (13.4 kW) @ 3600 RPM. 34.75 cu. in. (570 cc) displacement, 4-cycle, gasoline fueled, horizontal shaft. | |
| Lubrication: | Full pressure lubrication system with an automotive style oil filter. Oil fill tube with dipstick. | |
| Starter: | 12-volt electric and manual recoil. | |
| Alternator: | 16 A |
BASES:
Rail (Standard):
- Rigid steel channels
- Control panel and fuel tank shipped loose
No Base:
- Control panel and fuel tank shipped loose
FUEL TANK:
Rail or No Base Models:
All PB18 models (except PB18-LE) with Rail or No Base will have a shipped-loose, 3-gallon (11 liter) fuel tank that meets the EPA evaporative
requirement (40 CFR Part 1060)
Approximate Dimensions and Weights
| Length | Width | Height | Dry Weight | Ship Weight | ||||||
| Rail Base: | 24" (61.0 cm) | 18-3/4" (47.6 cm) | 21" (53.3 cm) | 121 lbs (55.0 kg) | 149 lbs (67.7 kg) | |||||
| No Base: | 23-3/4" (60.3 cm) | 18-3/4" (47.6 cm) | 20" (50.8 cm) | 116 lbs (52.6 kg) | 144 lbs (65.3 kg) |
Specifications subject to change without notice
