Description
Waterous 18HP 2515F Briggs & Stratton Fire Pump, Medium Volume / Pressure
SPECIFICATIONS – MOTOR PUMPS: PB18-2515 V-Twin Muscle in a Combination Pump System
Designed as combination pump, the durable and powerful Waterous 18HP 2515F Briggs & Stratton Fire Pump is direct drive centrifugal pump powered by a V-twin Briggs and Stratton 18 HP (13.4 kW) engine. The PB18-2515 also comes with a two-year limited warranty and is CE marked.
PUMP SPECIFICATIONS:
Type:
Combination
Intake:
2-1/2 inch female NPT
Discharge:
Ball valve with 1-1/2 inch male NH thread (2515B)
Ball valve with 1-1/2 inch female NPT (2515B)
Console:
Operator's panel includes discharge pressure gauge, compound intake pressure gauge, low oil pressure warning light, start and stop control, speed control, panel light and 12 volt outlet.
Volute Body and Head:
High-strength aluminum alloy, anodized for superior corrosion resistance.
Impeller:
High-strength, corrosion-resistant bronze, fully-enclosed, double-hubbed to balance hydraulic thrust, mechanically balanced to eliminate vibration.
Wear Rings:
Long wearing bronze. Easy to replace when required to restore original pump efficiency.
Shaft Sleeve:
High-strength stainless steel.
Shaft Seal:
Spring loaded mechanical type.
Priming:
Combination spark arresting muffler and exhaust primer, fast and easy to use. Quarter turn bronze priming valve, operates with push/pull knob. Standard on wrap-around. Optional on no base and rail base.
Warranty:
Waterous Two-Year Limited Warranty
ENGINE SPECIFICATIONS:
Engine:
Briggs & Stratton, model 356447, Vanguard V-Twin, air cooled, overhead valve (OHV) design delivers a maximum output of 18 HP (13.4 kW) @ 3600 RPM. 34.75 cu. in. (570 cc) displacement, 4-cycle, gasoline fueled, horizontal shaft.
Lubrication:
Full pressure lubrication system with an automotive style oil filter. Oil fill tube with dipstick.
Starter:
12-volt electric and manual recoil.
Alternator:
16 A
BASES:
Rail:
Rigid steel channels. Control panel and fuel tank shipped loose
No Base:
Control panel and fuel tank shipped loose
FUEL TANK:
Rail or No Base Models:
All PB18 models (except PB18-LE) with Rail or No Base will have a shipped-loose, 3-gallon (11 liter) fuel tank that meets the EPA evaporative requirement (40 CFR Part 1060).
Approximate Dimensions and Weights:
SPECIFICATIONS – MOTOR PUMPS: PB18-2515 V-Twin Muscle in a Combination Pump System
Designed as combination pump, the durable and powerful Waterous 18HP 2515F Briggs & Stratton Fire Pump is direct drive centrifugal pump powered by a V-twin Briggs and Stratton 18 HP (13.4 kW) engine. The PB18-2515 also comes with a two-year limited warranty and is CE marked.

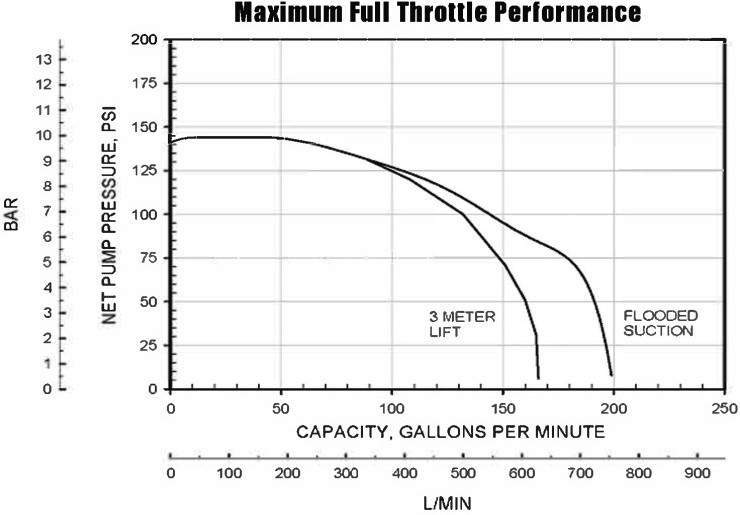

| | | GPM (LPM) | | PSI (BAR) |
| Max Flow: | | 150 GPM (600 lpm) | | 90 PSI (6.5 bar) |
| Max Pressure: | | 75 GPM (300 lpm) | | 135 PSI (9 bar) |
PUMP SPECIFICATIONS:
Type:
Combination
Intake:
2-1/2 inch female NPT
Discharge:
Ball valve with 1-1/2 inch male NH thread (2515B)
Ball valve with 1-1/2 inch female NPT (2515B)
Console:
Operator's panel includes discharge pressure gauge, compound intake pressure gauge, low oil pressure warning light, start and stop control, speed control, panel light and 12 volt outlet.
Volute Body and Head:
High-strength aluminum alloy, anodized for superior corrosion resistance.
Impeller:
High-strength, corrosion-resistant bronze, fully-enclosed, double-hubbed to balance hydraulic thrust, mechanically balanced to eliminate vibration.
Wear Rings:
Long wearing bronze. Easy to replace when required to restore original pump efficiency.
Shaft Sleeve:
High-strength stainless steel.
Shaft Seal:
Spring loaded mechanical type.
Priming:
Combination spark arresting muffler and exhaust primer, fast and easy to use. Quarter turn bronze priming valve, operates with push/pull knob. Standard on wrap-around. Optional on no base and rail base.
Warranty:
Waterous Two-Year Limited Warranty
ENGINE SPECIFICATIONS:
Engine:
Briggs & Stratton, model 356447, Vanguard V-Twin, air cooled, overhead valve (OHV) design delivers a maximum output of 18 HP (13.4 kW) @ 3600 RPM. 34.75 cu. in. (570 cc) displacement, 4-cycle, gasoline fueled, horizontal shaft.
Lubrication:
Full pressure lubrication system with an automotive style oil filter. Oil fill tube with dipstick.
Starter:
12-volt electric and manual recoil.
Alternator:
16 A
BASES:
Rail:
Rigid steel channels. Control panel and fuel tank shipped loose
No Base:
Control panel and fuel tank shipped loose
FUEL TANK:
Rail or No Base Models:
All PB18 models (except PB18-LE) with Rail or No Base will have a shipped-loose, 3-gallon (11 liter) fuel tank that meets the EPA evaporative requirement (40 CFR Part 1060).
Approximate Dimensions and Weights:
| | | Length | | Width | | Height | | Dry Weight | | Ship Weight |
| Rail Base: | | 19-1/4" (48.9 cm) | | 19-1/2" (49.5 cm) | | 20" (50.8 cm) | | 111 lbs (50.5 kg) | | 148 lbs (67.3 kg) |
| No Base: | | 19" (48.3 cm) | | 19-1/2" (49.5 cm) | | 19" (48.3 cm) | | 106 lbs (48.0 kg) | | 143 lbs (64.9 kg) |
Details
SKU: |
WATEROUS-PB18-2515B |
