Description

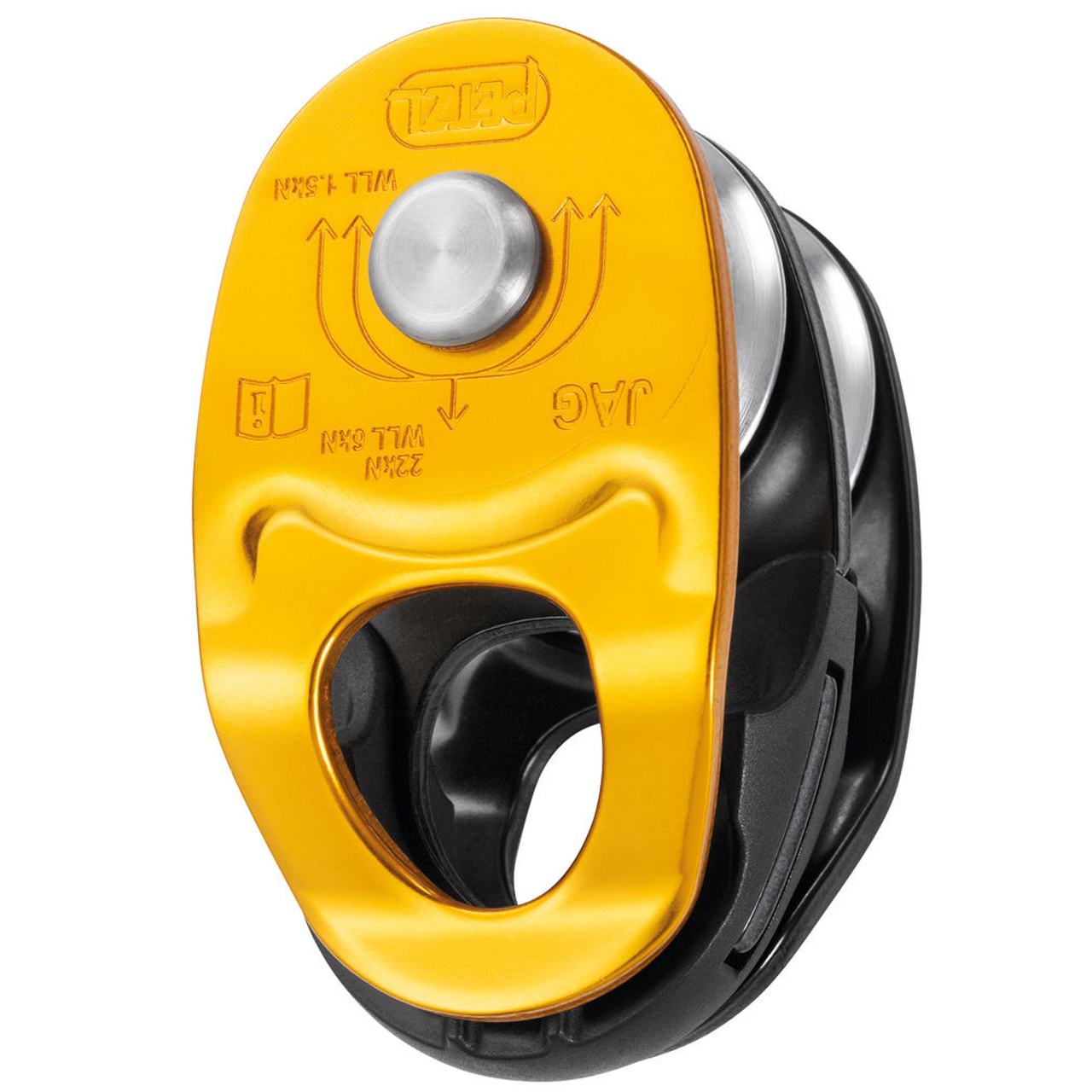

Petzl JAG Double Pulley
The Petzl JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system.
Features:
Specifications:
The Petzl JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system.
Features:
- Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
- Sheave mounted on sealed ball bearings for excellent efficiency
Specifications:
| Weight: | 120 g |
| Certification(s): | CE EN 12278, NFPA 1983 Technical Use |
| Materials: | Aluminum, Nylon |
| Min Rope Diameter: | 8mm |
| Max Rope Diameter: | 11mm |
| Sheave Type: | Sealed Ball Bearings |
| Sheave Diameter: | 25mm |
| Max Working Load: | 2 x 1.5 kN × 2 = 6 kN |
| Breaking Strength: | 2 x 4 kN × 2 = 16 kN |
| Efficiency: | 91 percent |
Details
SKU: |
PETZL-P45 |
