Description

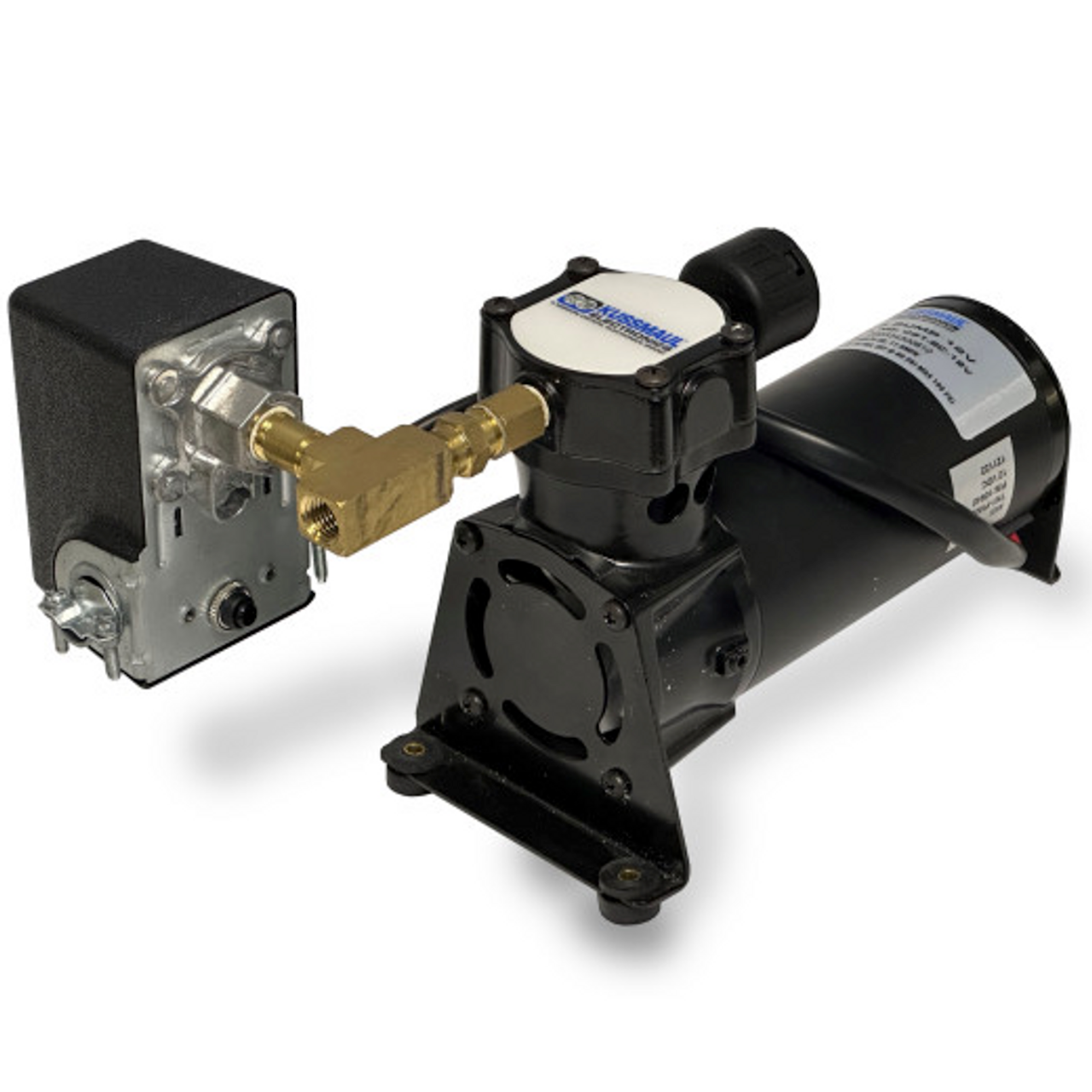

Kussmaul Auto Pump 12v
The Kussmaul 12v Auto Pump is a small air compressor designed to maintain the air pressure in air brake systems when the vehicle is not in use.
A pressure switch senses when the system pressure drops and starts the compressor which then runs until pressure is restored. All ball bearing construction, lubricated for life, assures reliable operation and requires no servicing.
Specification:
The Kussmaul 12v Auto Pump is a small air compressor designed to maintain the air pressure in air brake systems when the vehicle is not in use.
A pressure switch senses when the system pressure drops and starts the compressor which then runs until pressure is restored. All ball bearing construction, lubricated for life, assures reliable operation and requires no servicing.
Specification:
| PSI | 100 |
| Input Voltage | 12 |
| Orientation | Horizontal |
| Input | 12 Vdc at 11 Amps Max |
| Output | .30 SCFM at 80 PSI, .35 SCFM at 60 PSI |
| Warranty | 1 Year |
| Weight | 6 Lbs |
| Motor Type | Perm. Magnet. 10 HP |
| Pressure Switch | Adjustable Set-Point, Factory Set to 75 PSI Cut-In, 95 PSI Cut-Out |
Details
SKU: |
KM-091-9-12V |
