Hale Pumps

Hale PowerFlow HPX200-H20 Honda Fire Pump

No reviews yet Write a Review
$6,999.95
Hale PowerFlow HPX200-H20 Honda Fire Pump
Hale PowerFlow HPX200-H20 Honda Fire Pump
SKU:
HALE-HPX200-H20
Shipping:
Free Shipping
Current Stock:
$6,999.95

Frequently Bought Together:

Hale PowerFlow HPX200-H20 Honda Fire Pump
Inc. Tax
Ex. Tax

Description

Hale PowerFlow HPX200-H20 Honda Firefighting Pump



If you want flexibility and performance, and high quality is your minimum standard, the Hale Power Flow HPX200-H20 is right for you. The Hale Attack Firefighting pump range are designed to be tough and perform well at higher or lower pressures. Hale has over 100 years' experience making fire pumps so you can be sure your Hale pump will deliver performance when you need it.

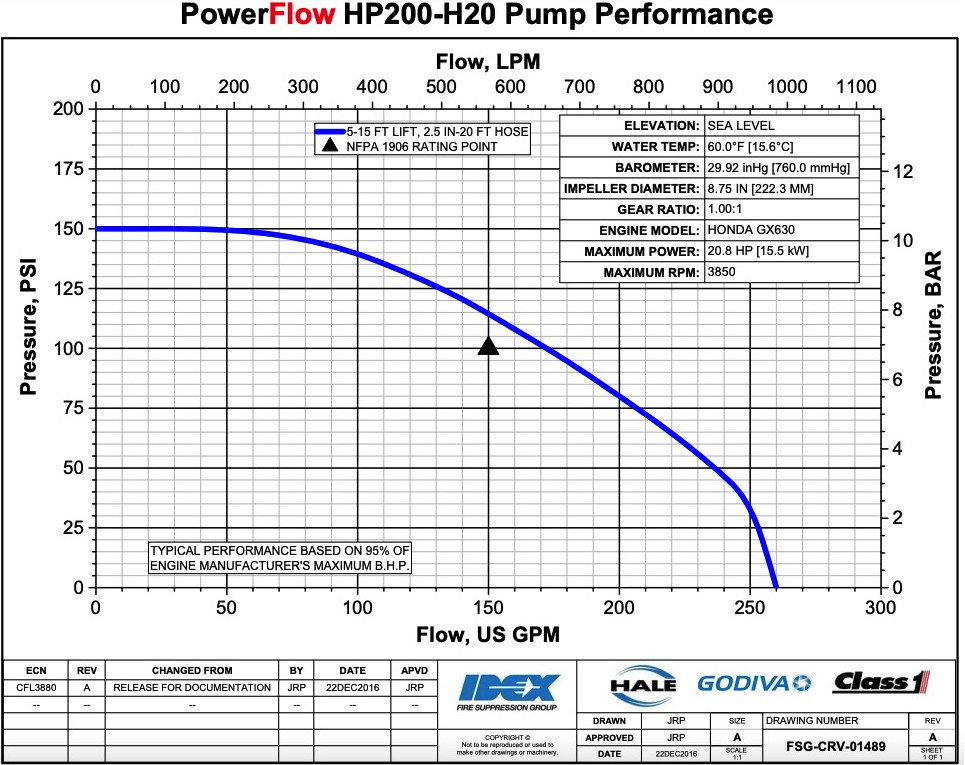

Flows:
250 GPM @ 30 PSI
150 GPM @ 115 PSI
100 GPM @ 140 PSI
40 GPM @ 150 PSI

Features:
  • Powerful Honda 20.8-HP 4-cycle V-Twin gasoline engine
  • Electric start
  • Anodized aluminum alloy pump head and body
  • Pump head and body coupled together with stainless steel band clamp for easy serviceability
  • Bronze impeller and renewable wear rings
  • Self-adjusting mechanical seal
  • Exhaust venturi ejector primer
  • 3.0" NPT / 4.0" Victaulic suction connection; 2.5" NPT discharge

X Base Features:
  • Maxstream pump without base fuel tank - configured for easy installation by truck builders
  • Exhaust venturi ejector primer
  • Mounted to a steel skid base plate that can easily be mounted into any vehicle
  • Rail base includes all required hardware and vibration isolators
  • Control Panel (ships loose) with mounted single discharge gauge and engine controls is included as standard
  • 6' wiring harness

Control X Panel (standard - ships loose):
  • Discharge Gauge
  • Priming Lever
  • Start Button
  • On/Off Switch
  • Oil Warning Light
  • Choke & Throttle Control

Specifications:

Length (inches):
19.75"
Width (inches):
18.38"
Height (inches):
20.5"
Weight (pounds):
163 lbs (74 kg)
Suction Connection:
3.0" NPT / 4.0" Victaulic suction connection
Discharge Connection:
2.5" NPT discharge
Body and Head:
Lightweight, high strength, anodized aluminum
Pump Shaft:
Engine shaft with bronze sleeve
Impeller:
Enclosed type, silicon bronze
Clearance Rings:
Renewable type, bearing bronze
Gear Box:
Direct drive
Priming:
Exhaust venturi ejector primer
Type:
Medium Pressure, Medium Volume
Max Pressure (PSI):
150 psi
Max Flow (GPM):
260 gpm
NFPA 1906 Rated Capacity:
40 GPM @ 150 PSI
250 GPM @ 30 PSI

Ideal Applications:
  • Wildland and attack firefighting
  • Booster Reel
  • Single 1-3/4" line
  • 2-1/2" supply line

Details

SKU:
HALE-HPX200-H20
