Hale HPX400-B18 Skid Mount Firefighting Pump

Hale HPX400-B18 Truck Mount Firefighting Pump



When you need to move a lot of water, the Hale HPX400-B18 Fire Pump is a high quality pump that is engineered to perform.

The Hale HPX400-B18 Fire Pump is a high flow pump that gives you the capacity you need.

Whether your application is for low pressure firefighting, water transfer or de-watering, there is a Hale high flow pump for you. Hale has a long heritage of designing and manufacturing high performance fire pumps, so you can trust Hale to deliver the performance you demand.

Features:

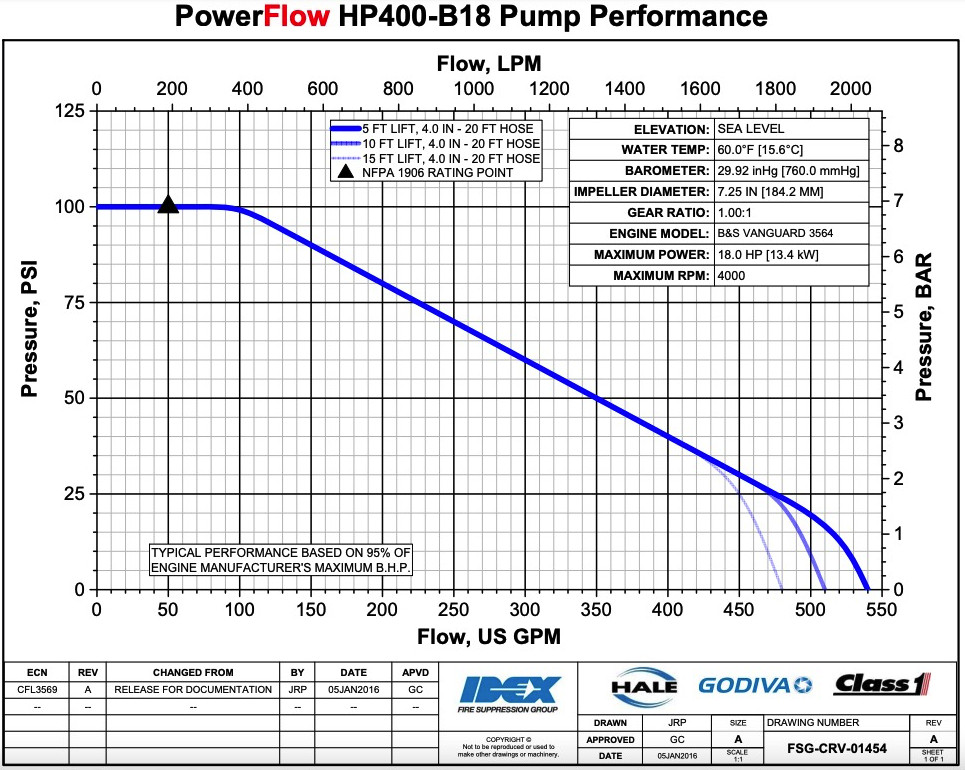

• Flows ranging from 90 GPM @ 100 PSI to 500 GPM @ 15 PSI
• Ultra-reliable Briggs & Stratton 18-HP 4-cycle V-Twin gasoline engine
• Electric start with recoil backup
• Anodized aluminum alloy pump head and body
• Pump head and body coupled together with stainless steel band clamp for easy serviceability
• Bronze impeller and renewable wear rings
• Self-adjusting mechanical seal
• Exhaust gas venturi priming
• 3.0" NPT / 4.0" Victaulic suction connection
• 3.0" NPT discharge connection
• 6' wiring harness

Applications/Solutions:

• Fire OEMs
• Firefighting - Wildland Forestry

Control X Panel (standard - ships loose):

• Discharge Gauge
• Priming Lever
• Start Button
• On/Off Switch
• Oil Warning Light
• Choke & Throttle Control

Max Flow:		550 GPM
Max Pressure:		100 PSI
Length:		21 inches (533 mm)
Width:		18 inches (457 mm)
Height:		20 inches (508 mm)
Weight:		163 lbs (74 kg)
Suction:		3" Female NPT/4" Victaulic
Discharge:		3" Female NPT
Engine:		Briggs & Stratton Vanguard gas, air cooled
