Description
Hale HPX275-B35 Portable Firefighting Pump
When you need to move a lot of water, the Hale HPX275-B35 Portable Firefighting Pump is a high quality pump that is engineered to perform.

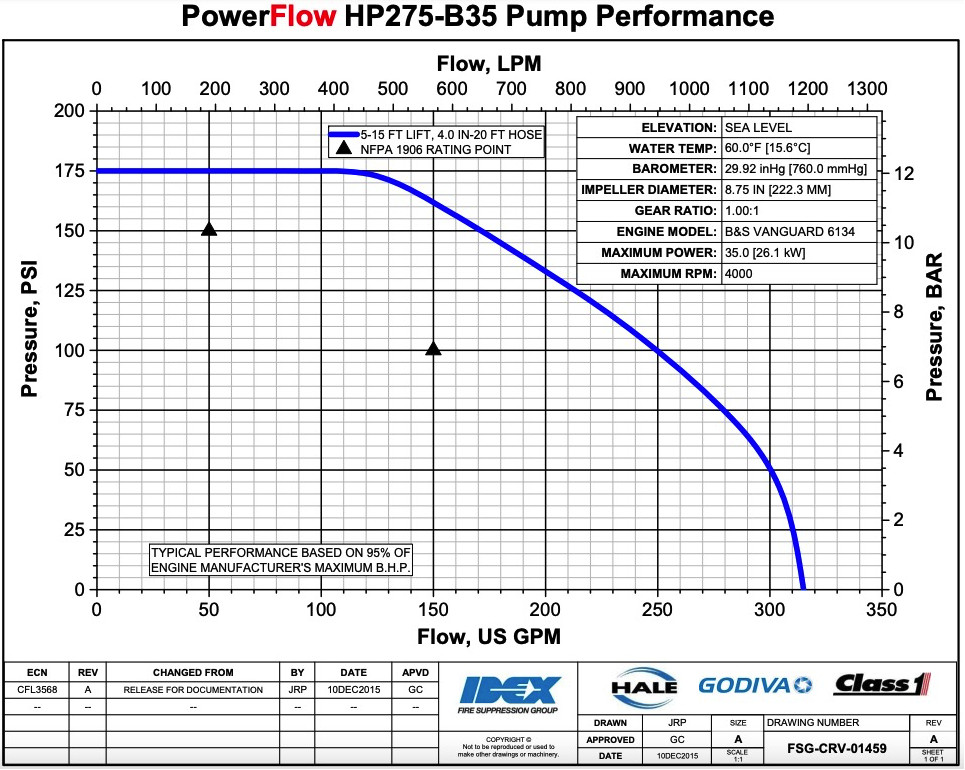

Flows (5' draft):
290 GPM @ 60 PSI
250 GPM @ 100 PSI
170 GPM @ 150 PSI
Hale Pumps range of high flow pumps give you the capacity you need.
Whether your application is for low pressure firefighting, water transfer or de-watering, there is a Hale high flow pump for you.
Hale has a long heritage of designing and manufacturing high performance fire pumps, so you can trust Hale to deliver the performance you demand.
Features:
- Flows ranging from 170 GPM @ 150 PSI to 250 GPM @ 100 PSI
- Ultra-reliable Briggs & Stratton 35HP 4-cycle V-Twin big bore gasoline engine
- Electric start/ manual recoil backup
- Anodized aluminum alloy pump head and body
- Pump head and body coupled together with stainless steel band clamp for easy serviceability
- Bronze impeller and renewable wear rings
- Self-adjusting mechanical seal
- 6' wiring harness
Control Panel:
- Discharge gauge
- Priming lever
- Start button
- ON/OFF switch
- Oil warning light
- Choke
- Throttle control
Specifications:
| Length: | 24" inches | |
| Width: | 23.5" inches | |
| Height: | 24.38" inches | |
| Weight: | 190 lbs (86 kg) | |
| Suction Connection: | 4.0" Victaulic | |
| Discharge Connection: | 3.0" Female NPT | |
| Body and Head: | Lightweight, high strength, anodized aluminum | |
| Pump Shaft: | Engine shaft with bronze sleeve | |
| Impeller: | Enclosed type, silicon bronze | |
| Clearance Rings: | Renewable type, bearing bronze | |
| Gear Box: | Direct drive | |
| Priming: | USFS Guzzler hand primer (optional ESP-12 electric rotary vane primer) | |
| Type: | Medium Pressure, High Volume | |
| Max Pressure (PSI): | 175 PSI | |
| Max Flow (GPM): | 300 GPM | |
| NFPA 1906 Rated Capacity: | 50 GPM @ 150 PSI, 150 GPM @ 100 PSI |
*NOTE: Not for sale or use in California
Details
SKU: |
HALE-HPX275-B35 |
