Hale HPX450-B35 Firefighting Pump
The Hale HPX450-B35 Attack Max Firefighting Pump is conveniently designed for easy of use and high capacity.

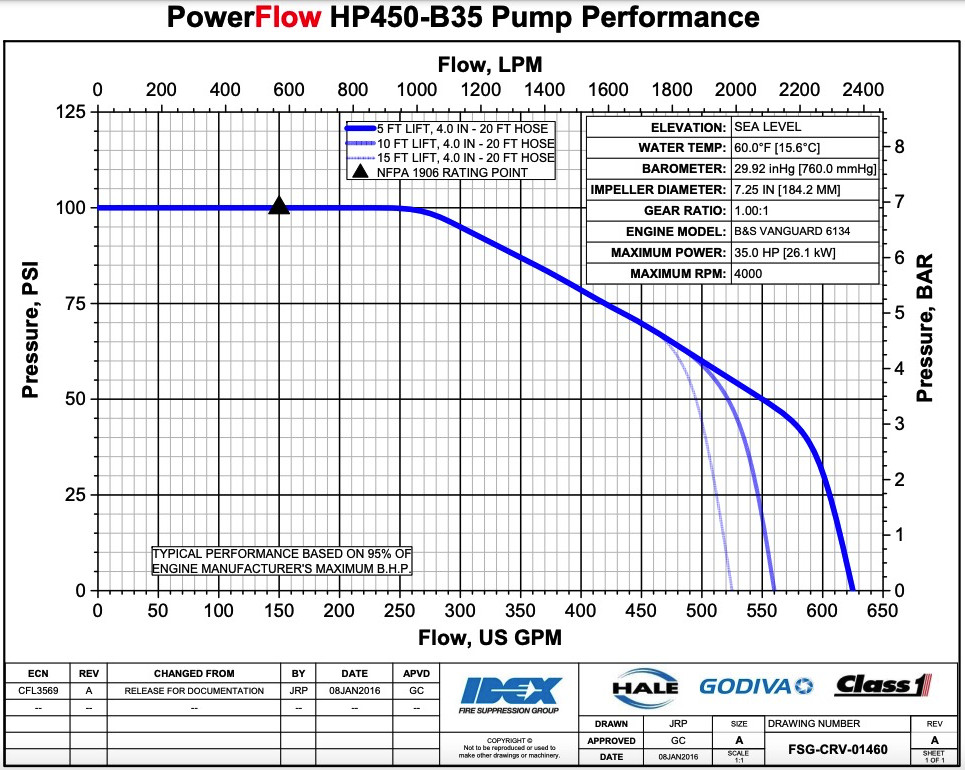

Flows: (see above pump curve under picture of pump)
550 GPM @ 45 PSI
400 GPM @ 75 PSI
250 GPM @ 100 PSI
Power is provided by the respected Briggs & Stratton Vanguard Engine. The Vanguard power comes from a reliable state-of-the-art, air cooled, 35 BHP, V-twin, Overhead Valve (OHV) engine.
The overhead valve design delivers more power than conventionally designed side-valve engines. It has an electric starter to ensure starting under all conditions.
Features:
X-Stream Control Panel:
Specifications:
*NOTE: not for sale or use in California
The Hale HPX450-B35 Attack Max Firefighting Pump is conveniently designed for easy of use and high capacity.
Flows: (see above pump curve under picture of pump)
550 GPM @ 45 PSI
400 GPM @ 75 PSI
250 GPM @ 100 PSI
Power is provided by the respected Briggs & Stratton Vanguard Engine. The Vanguard power comes from a reliable state-of-the-art, air cooled, 35 BHP, V-twin, Overhead Valve (OHV) engine.
The overhead valve design delivers more power than conventionally designed side-valve engines. It has an electric starter to ensure starting under all conditions.
Features:
- Skid/Truck Mount
- 35hp Briggs & Stratton Gasoline engine
- Electric start/ manual recoil backup
- Guzzler hand primer
- Control Panel (ships loose)
- Flows ranging from 250 GPM @ 100 PSI to 550 GPM @ 45 PSI
- Ultra-reliable Briggs & Stratton 35-HP 4-cycle V-Twin big bore gasoline engine
- Electric start with recoil backup
- Anodized aluminum alloy pump head and body
- Pump head and body coupled together with stainless steel band clamp for easy serviceability
- Bronze impeller and renewable wear rings
- Self-adjusting mechanical seal
- 6' wiring harness
X-Stream Control Panel:
- X-Stream with discharge gauge
- Start button
- ON/OFF switch
- Oil warning light
- Choke & throttle control
Specifications:
Length: | | 24" inches |
Width: | | 23.5" inches |
Height: | | 24.5" inches |
Weight: | | 190 lbs (86 kg) |
Suction Connection: | | 4.0" Victaulic |
Discharge Connection: | | 3.0" Female NPT |
Body and Head: | | Lightweight, high strength, anodized aluminum |
Pump Shaft: | | Engine shaft with bronze sleeve |
Impeller: | | Enclosed type, silicon bronze |
Clearance Rings: | | Renewable type, bearing bronze |
Gear Box: | | Direct drive |
Priming: | | USFS Guzzler hand primer (optional ESP-12 electric rotary vane primer) |
Type: | | Low Pressure, High Volume |
Max Pressure (PSI): | | 100 PSI |
Max Flow (GPM): | | 600 GPM |
NFPA 1906 Rated Capacity: | | 150 GPM @ 100 PSI |
*NOTE: not for sale or use in California
