Description
Darley Fire Pump 2BE 18HP Briggs Vanguard
Darley Fire Pump 2BE18V 18 HP Briggs & Stratton Vanguard Portable Fire Pump
The Darley 2BE 18 HP Vanguard Portable Pump is a Medium Pressure, High Volume, Direct Drive, Engine Mounted Fire Pump.

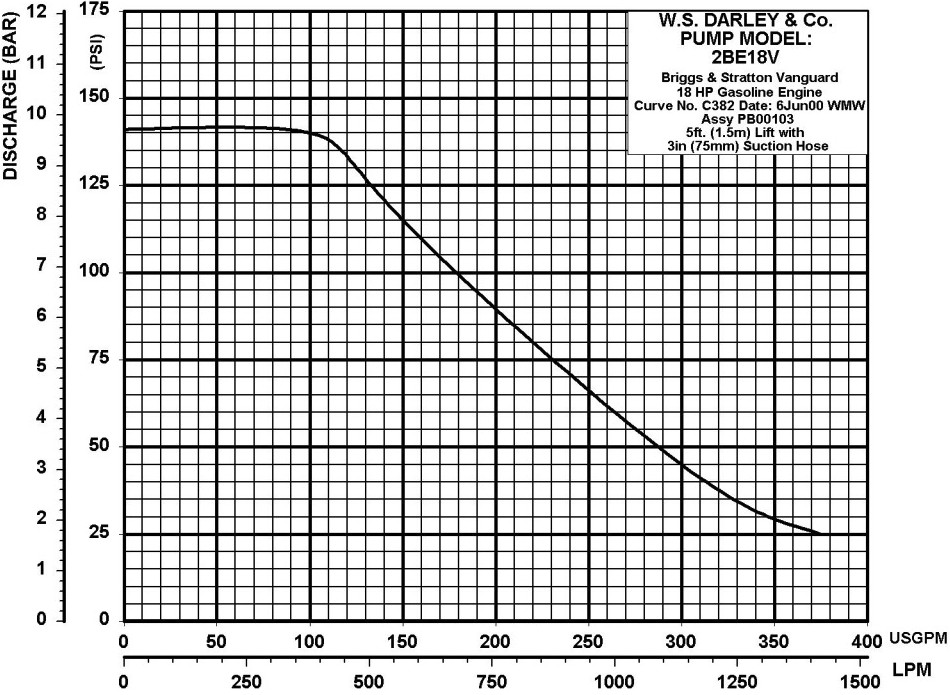

Performance:
375 gpm (1419 L/M) @ 25 psi (1.7 bar)
300 gpm (1136 L/M) @ 45 psi (3.1 bar)
100 gpm (378 L/M) @ 140 psi (9.7 bar)
Applications:
- Booster Tank Fill
- Multiple Hand Lines
- Transfer and Supply
- Wildland/Attack Fire Suppression
Engine:
- Briggs & Stratton Vanguard
- 4 cycle
- 18 HP
- V-twin
- OHV
- Replaceable oil filter
- 34.75 cu. in. displacement
- 12-volt starter
- Recoil rope start back-up
- 16 amp regulated alternator
- 7.2 qt. fuel tank
- Battery (option)
Dimensions/Weight:
27" L x 21" W x 25" H, 145 lbs. (66 kg)
Features:
- Right Side Mount Control Panel
- Aluminum alloy casing
- Discharge valve
- Bronze impeller and seal ring
- Stainless steel impeller shaft
- Mechanical Seal
- 3" NPT suction
- (qty 1) 2-1/2" NPT discharge
- (qty 2) 1-1/2" NPT discharges
Details
SKU: |
WS-2BE18V |
