Description
Darley 2BE 10YDW Diesel Fire Pump
The Darley 2BE-10YDW Diesel Fire Pump is a medium pressure, high volume, engine mounted recoil rope start, firefighting pump.

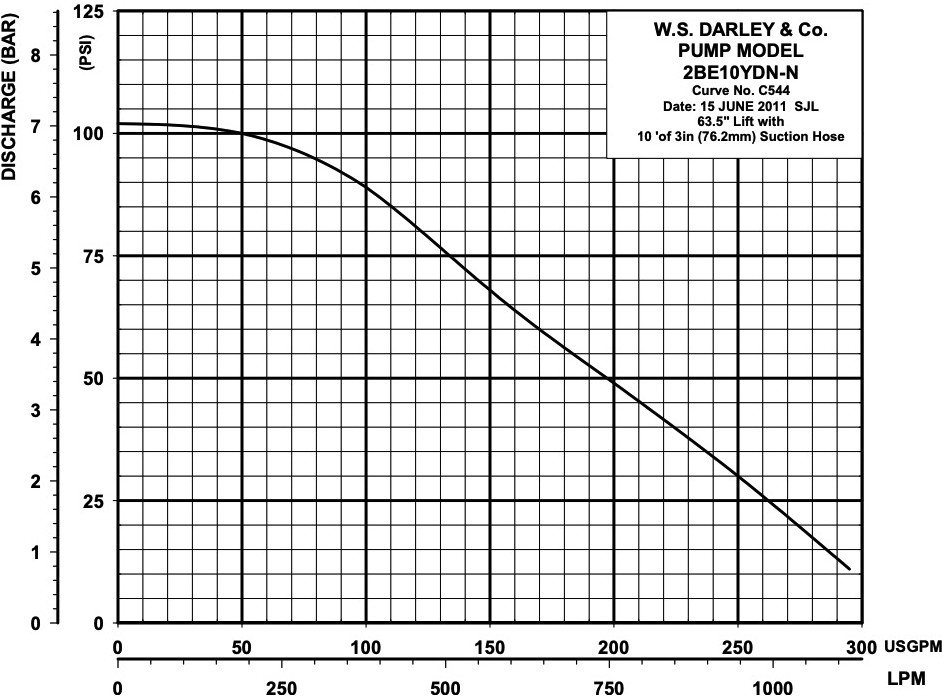

Performance:
250 gpm (946 L/M) @ 20 psi (1.4 bar)
180 gpm (681 L/M) @ 50 psi (4.1 bar)
95 gpm (359 L/M) @ 90 psi (6.2 bar)
Pump Info:
Medium Pressure, High Volume, Engine Mounted
Engine:
- Yanmar Diesel L100W
- 9.3HP
- 3600 RPM
- 4 cycle
- Air cooled
- 1 cylinder
- Electric start
- Recoil rope start back-up
- 12 volt electric start and alternator
- EPA complaint for US civilian applications
Top Mount Panel Includes:
- Pull twist throttle
- Handle
- Key
- Start/Stop
- Hour meter light
- Roll cage
Features:
- Anodized aluminum alloy casing
- Discharge head
- Engine adapter
- Bronze impeller and wear rings
- Stainless steel impeller shaft - optional
- Shredded plastic packing
- Discharge check valve
- Adjustable discharge valve
- Throttle
- Roll cage
- 3" NPT suction
- 2-1/2" NPT discharge
Dimensions:
21"L x 23.5"W x 26.41"H, 163 lbs. (74 kg)
Details
SKU: |
WS-2BE-10YDW |
