Description
CET 20hp Honda Skid Mount Mid Range Fire Pump

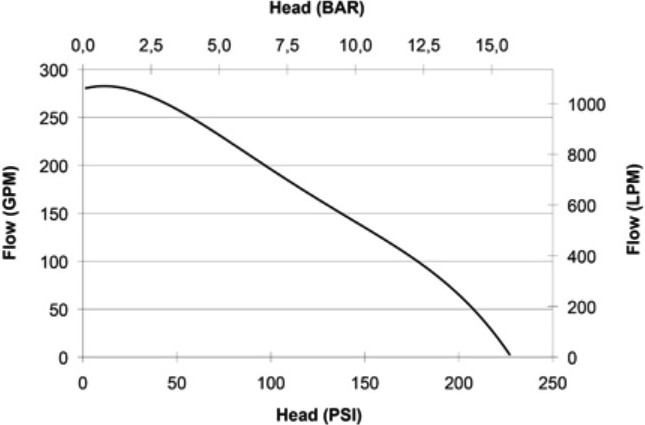

Flows:
MAX FLOW: 300 GPM
MAX PRESSURE: 205 PSI
240 GPM @ 50 PSI
125 GPM @ 150 PSI
60 GPM @ 200 PSI
The 20hp Honda Mid Range Pump is a high pressure, high volume pump that is most suitable for drop-in units. The engine and pump are mounted on a skid frame. The skid version is easily mountable on vehicles and trailers.
Engine specifications:
- GX630 Honda air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start
- Inlet with NPT thread (other threads available on request)
- Outlet down right with NPT Threads
- Control panel Quick connector instead of battery
- Separate gas tank not included
Pump unit specifications:
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20' (6 meter) lift
- One 1-1/2" (38mm) delivery outlet
- One 2-1/2" (65mm) suction inlet
- Dimensions: Length: 19-3/4" (502 mm); Width: 24-1/4" (615 mm); Height: 24-3/4" (630 mm)
- Weight: 147.4 lbs (67 kg)
Accessories:
- Pressure gauge
- Low oil alert
- Quick connect for 12-V battery
Warranty:
3 Years Limited
Details
SKU: |
PFP-SM-20HPHND-MR |
